General Communication Product Series
Operating Frequency: 1 MHz – 6 GHz
Output Power: 1 W – 5000 W
Input VSWR: ≤1.5
Output VSWR: ≤2.0
AC Operating Voltage: 198 V–240 V, 340 V–530 V
Operating Temperature: 0 ℃ – 40 ℃
General Communication Product Series

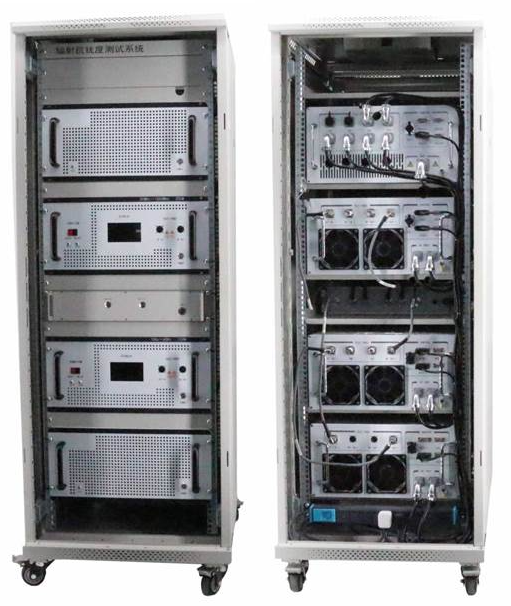

I. Full Series of Cabinet-type Power Amplifiers

Model



Frequency

MHz

Output Power

Min(Past)

dBm

Input Power

Typ（P-1）

dBm

Gain

Min

dB

Gain Flatness

Typ

dB

Output VSWR

Typ

Input VSWR

Typ

Dimension

L*W*Hmm*mm*mm

ZLPA698M960M1000

698-960

60dBm(AVG)/70dBm(PEP)Split Ratio 10dB

60

60

±2.0

2.5

1.5

480*550*2220

ZLPA698M960M1000

698-960

60dBm(AVG)/70dBm(PEP)Split Ratio 10dB

60

60

±2.0

2.5

1.5

480*550*2220

ZLPA1.8G2.2G1000

1805-2170

60dBm(AVG)/70dBm(PEP)Split Ratio 10dB

60

60

±2.0

2.5

1.5

480*550*2220

ZLPA2.3G2.7G1000

2300-2700

60dBm(AVG)/70dBm(PEP)Split Ratio 10dB

60

60

±2.0

2.5

1.5

480*550*2220

ZLPA3.3G3.8G50

3300-3800

47dBm(AVG)/57dBm(PEP)Split Ratio 10dB

57

57

±2.0

2.5

1.5

480*550*2220

Note: Model, frequency, output power and other parameters can be customized.

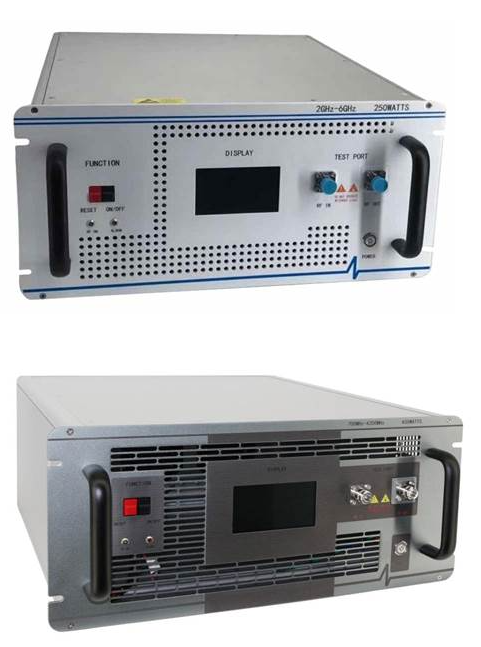

II. Chassis-mounted Power Amplifier Series

Model



Frequency

MHz

Output Power

Min(Past)

dBm

Input Power

Typ（P-1）

dBm

Gain

Min

dB

Gain Flatness

Typ

dB

Output VSWR

Typ

Input VSWR

Typ

Dimension

L*W*Hmm*mm*mm

ZLPA1M30M200

1-30

53

52

53

±2.0

5.5

2.0

480*550*222

ZLPA30M88M200

30-88

53

52

53

±2.0

3.5

2.0

480*550*222

ZLPA30M512M200

30-512

53

52

53

±3.5

3.5

2.0

480*550*222

ZLPA698M1G200

698-960

53

52

53

±2.0

2.5

1.5

480*550*222

ZLPA1.2G1.4G200

1060-1090

53d

52

53

±0.5

2.0

1.5

480*550*222

ZLPA1.4G1.6G200

1200-1400

53

52

53

±2.0

2.0

1.5

480*550*222

ZLPA1.8G2.2G200

1800-2200

53

52

53

±2.0

2.5

1.5

480*550*222

ZLPA2.3G2.7G200

2300-2700-

53

52

53

±2.0

2.5

1.5

480*550*222

ZLPA2.7G3.1G200

2700-3100

53

52

53

±2.0

2.5

1.5

480*550*222

ZLPA3.1G3.5G200

3100-3500

53

52

53

±2.0

2.5

1.5

480*550*222

ZLPA3.4G3.8G200

3400-3800

53

52

53

±2.0

2.5

1.5

480*550*222

ZLPA4.4G5.2G200

4400-5200

53

51

53

±2.5

2.0

1.5

480*550*222

ZLPA5.3G5.9G200

5300-5900

53

51

53

±2.0

2.0

1.5

480*550*222
