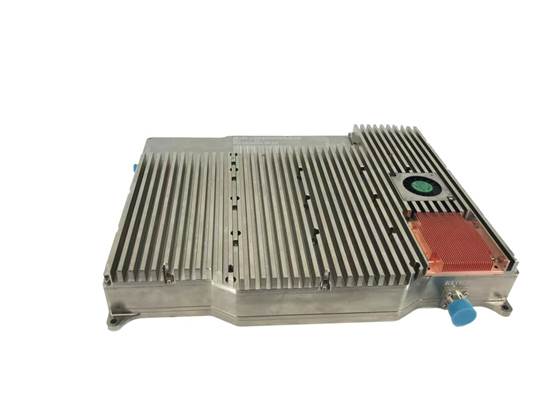

Module Series
Operating Frequency: 4kHz – 40GHz
Output Power: 1W – 250W
Input VSWR: ≤1.5
Output VSWR: ≤2.0
DC Operating Voltage: 24V – 36V
Operating Temperature: 0℃ – 40℃
|
|
Power Module Series Selection Manual
|
Supports 3-meter field calibration and testing, covering 3V (calibrated to 5.4V) and 10V (calibrated to 18V) field strength scenarios.
Adopts user-friendly human-computer interaction interface with simple and elegant operation.
Featuring reasonable structural design and exquisite appearance.
Reliable performance and easy for daily operation.
|
|
Professional EMC Power Amplifier Solutions
|
|
|
I. Power Amplifier Module Series
|
|
Model
|
Frequency
MHz
|
Output Power
Min(Past)
dBm
|
Input Power
Typ（P-1）
dBm
|
Gain
Min
dB
|
Gain Flatness
Typ
dB
|
Output VSWR
Typ
|
Input VSWR
Typ
|
Dimension
L*W*Hmm*mm*mm
|
|
LDPA4K400M100
|
0.004-400
|
50.0
|
47.0
|
50.0
|
±3.0
|
4.0
|
2.0
|
230*160*53.5
|
|
LDPA100K400M100
|
0.1-400
|
50.0
|
47.0
|
50.0
|
±3.0
|
4.0
|
2.0
|
230*160*53.5
|
|
LDPA100K500M200
|
0.1-500
|
53.0
|
50.0
|
53.0
|
±3.5
|
4.0
|
2.0
|
279.5*170*55.5
|
|
LDPA80M1G250
|
80-1000
|
54.0
|
51.0
|
54.0
|
±4.5
|
4.0
|
1.5
|
294.3*238.5*50
|
|
LDPA1G6G80
|
1000-6000
|
49.0
|
46.0
|
49.0
|
±4.5
|
3.0
|
1.5
|
294.3*238.5*30
|
|
LDPA6G18G50
|
6000-18000
|
47.0
|
---
|
47.0
|
±4.5
|
---
|
2.0
|
260*200*40
|
|
LDPA18G26.5G50
|
18000-26500
|
47
|
---
|
47.0
|
±4.0
|
---
|
2.0
|
280*200*40
|
|
LDPA26.5G40G
|
26500-40000
|
46
|
---
|
46
|
±4.0
|
---
|
2.0
|
280*200*40
|
|
|
|
|
II.Technical Specifications
|
|
1、Model：ZLPA4K400M100
|
|
Operating Specifications(Technical Specifications）
|
|
Parameter（Parameters）
|
Min
|
Typ
|
Max
|
Units
|
|
Frequency（Frequency）
|
0.004
|
---
|
400.0
|
MHz
|
|
Avg Output PowerPast（Output Saturation Power）
|
100
|
---
|
---
|
Watts
|
|
Avg Output Power P-1（Output Linear Power）
|
50
|
---
|
---
|
Watts
|
|
Gain（Gain）
|
50
|
---
|
---
|
dB
|
|
Power In（Input Power）
|
---
|
---
|
3
|
dBm
|
|
Supply Voltage(Supply Voltage DC）
|
32
|
---
|
36
|
V
|
|
Supply Power(Supply Power DC）
|
---
|
---
|
600
|
W
|
|
Gain Flatness(Gain Flatnes）
|
---
|
±3.0
|
---
|
dB
|
|
Harmonic((Second Harmonic)@P1dB
|
---
|
-20
|
---
|
dBc
|
|
Spurious(Spurious)
|
---
|
-50
|
---
|
dBc
|
|
Storage Temp（Storage Temperature）
|
-20
|
---
|
60
|
℃
|
|
Case Oper Temp（Operation Temperature）
|
0
|
---
|
40
|
℃
|
|
Input VSWR（Input VSWR）
|
---
|
2.0
|
---
|
|
|
Output VSWR（Output VSWR）
|
---
|
4.0
|
---
|
|
|
Nominal impedance(Nominal Impedance)
|
---
|
50
|
---
|
Ω
|
|
Amplifier Safeguard Temp（Power Amplifier Temperature Protection）
|
60
|
---
|
---
|
℃
|
|
Safeguard Power In（InputSignal Protection）
|
---
|
---
|
3
|
dBm
|
|
Connector（Connector）
|
RFin:SMA-F,RFout:SMA-F
|
|
Dimension（Dimension）
|
≈230*160*53.5mmWithout Connectors
|
|
Control system（Control）
|
Null
|
|
Remarks（Remarks）
|
|
|
|
|
|
2、Model：ZLPA100K400M100
|
|
Operating Specifications(Technical Specifications）
|
|
Parameter（Parameters）
|
Min
|
Typ
|
Max
|
Units
|
|
Frequency（Frequency）
|
0.1
|
---
|
400.0
|
MHz
|
|
Avg Output PowerPast（Output Saturation Power）
|
100
|
---
|
---
|
Watts
|
|
Avg Output Power P-1（Output Linear Power）
|
50
|
---
|
---
|
Watts
|
|
Gain（Gain）
|
50
|
---
|
---
|
dB
|
|
Power In（Input Power）
|
---
|
---
|
3
|
dBm
|
|
Supply Voltage(Supply Voltage DC）
|
32
|
---
|
36
|
V
|
|
Supply Power(Supply Power DC）
|
---
|
---
|
600
|
W
|
|
Gain Flatness(Gain Flatnes）
|
---
|
±3.0
|
---
|
dB
|
|
Harmonic((Second Harmonic)@P1dB
|
---
|
-20
|
---
|
dBc
|
|
Spurious(Spurious)
|
---
|
-50
|
---
|
dBc
|
|
Storage Temp（Storage Temperature）
|
-20
|
---
|
60
|
℃
|
|
Case Oper Temp（Operation Temperature）
|
0
|
---
|
40
|
℃
|
|
Input VSWR（Input VSWR）
|
---
|
2.0
|
---
|
|
|
Output VSWR（Output VSWR）
|
---
|
4.0
|
---
|
|
|
Nominal impedance(Nominal Impedance)
|
---
|
50
|
---
|
Ω
|
|
Amplifier Safeguard Temp（Power Amplifier Temperature Protection）
|
60
|
---
|
---
|
℃
|
|
Safeguard Power In（InputSignal Protection）
|
---
|
---
|
3
|
dBm
|
|
Connector（Connector）
|
RFin:SMA-F,RFout:SMA-F
|
|
Dimension（Dimension）
|
≈230*160*53.5mmWithout Connectors
|
|
Control system（Control）
|
Null
|
|
Remarks（Remarks）
|
|
|
|
|
|
3、Model：ZLPA100K500M200
|
|
Operating Specifications(Technical Specifications）
|
|
Parameter（Parameters）
|
Min
|
Typ
|
Max
|
Units
|
|
Frequency（Frequency）
|
0.1
|
---
|
500.0
|
MHz
|
|
Avg Output PowerPast（Output Saturation Power）
|
200
|
---
|
---
|
Watts
|
|
Avg Output Power P-1（Output Linear Power）
|
50
|
---
|
---
|
Watts
|
|
Gain（Gain）
|
53
|
---
|
---
|
dB
|
|
Power In（Input Power）
|
---
|
---
|
3
|
dBm
|
|
Supply Voltage(Supply Voltage DC）
|
32
|
---
|
36
|
V
|
|
Supply Power(Supply Power DC）
|
---
|
---
|
1000
|
W
|
|
Gain Flatness(Gain Flatnes）
|
---
|
±3.5
|
---
|
dB
|
|
Harmonic((Second Harmonic)@P1dB
|
---
|
-20
|
---
|
dBc
|
|
Spurious(Spurious)
|
---
|
-50
|
---
|
dBc
|
|
Storage Temp（Storage Temperature）
|
-20
|
---
|
60
|
℃
|
|
Case Oper Temp（Operation Temperature）
|
0
|
---
|
40
|
℃
|
|
Input VSWR（Input VSWR）
|
---
|
2.0
|
---
|
|
|
Output VSWR（Output VSWR）
|
---
|
4.0
|
---
|
|
|
Nominal impedance(Nominal Impedance)
|
---
|
50
|
---
|
Ω
|
|
Amplifier Safeguard Temp（Power Amplifier Temperature Protection）
|
60
|
---
|
---
|
℃
|
|
Safeguard Power In（InputSignal Protection）
|
---
|
---
|
3
|
dBm
|
|
Connector（Connector）
|
RFin:SMA-F,RFout:SMA-F
|
|
Dimension（Dimension）
|
≈279.5*170*55.5mmWithout Connectors
|
|
Control system（Control）
|
Null
|
|
Remarks（Remarks）
|
|
|
|
4、Model：ZLPA80M1G250
|
|
Operating Specifications(Technical Specifications）
|
|
Parameter（Parameters）
|
Min
|
Typ
|
Max
|
Units
|
|
Frequency（Frequency）
|
80
|
---
|
1000
|
MHz
|
|
Avg Output PowerPast（Output Saturation Power）
|
250
|
---
|
---
|
Watts
|
|
Avg Output Power P-1（Output Linear Power）
|
120
|
---
|
---
|
Watts
|
|
Gain（Gain）
|
54
|
---
|
---
|
dB
|
|
Power In（Input Power）
|
---
|
---
|
3
|
dBm
|
|
Supply Voltage(Supply Voltage DC）
|
32
|
---
|
36
|
V
|
|
Supply Power(Supply Power DC）
|
---
|
---
|
1200
|
W
|
|
Gain Flatness(Gain Flatnes）
|
---
|
±4.5
|
---
|
dB
|
|
Harmonic((Second Harmonic)@P1dB
|
---
|
-20
|
---
|
dBc
|
|
Spurious(Spurious)
|
---
|
-50
|
---
|
dBc
|
|
Storage Temp（Storage Temperature）
|
-20
|
---
|
60
|
℃
|
|
Case Oper Temp（Operation Temperature）
|
0
|
---
|
40
|
℃
|
|
Input VSWR（Input VSWR）
|
---
|
1.5
|
---
|
|
|
Output VSWR（Output VSWR）
|
---
|
4.0
|
---
|
|
|
Nominal impedance(Nominal Impedance)
|
---
|
50
|
---
|
Ω
|
|
Amplifier Safeguard Temp（Power Amplifier Temperature Protection）
|
60
|
---
|
---
|
℃
|
|
Safeguard Power In（InputSignal Protection）
|
---
|
---
|
3
|
dBm
|
|
Connector（Connector）
|
RFin:SMA-F,RFout:N-F
|
|
Dimension（Dimension）
|
≈294.3*238.5*50mmWithout Connectors
|
|
Control system（Control）
|
Null
|
|
Remarks（Remarks）
|
|
|
|
5、Model：ZLPA1G6G80
|
|
Operating Specifications(Technical Specifications）
|
|
Parameter（Parameters）
|
Min
|
Typ
|
Max
|
Units
|
|
Frequency（Frequency）
|
1000
|
---
|
6000
|
MHz
|
|
Avg Output PowerPast（Output Saturation Power）
|
80
|
---
|
---
|
Watts
|
|
Avg Output Power P-1（Output Linear Power）
|
40
|
---
|
---
|
Watts
|
|
Gain（Gain）
|
49
|
---
|
---
|
dB
|
|
Power In（Input Power）
|
---
|
---
|
3
|
dBm
|
|
Supply Voltage(Supply Voltage DC）
|
28
|
---
|
34
|
V
|
|
Supply Power(Supply Power DC）
|
---
|
---
|
550
|
W
|
|
Gain Flatness(Gain Flatnes）
|
---
|
±4.5
|
---
|
dB
|
|
Harmonic((Second Harmonic)@P1dB
|
---
|
-20
|
---
|
dBc
|
|
Spurious(Spurious)
|
---
|
-50
|
---
|
dBc
|
|
Storage Temp（Storage Temperature）
|
-20
|
---
|
60
|
℃
|
|
Case Oper Temp（Operation Temperature）
|
0
|
---
|
40
|
℃
|
|
Input VSWR（Input VSWR）
|
---
|
1.5
|
---
|
|
|
Output VSWR（Output VSWR）
|
---
|
3.0
|
---
|
|
|
Nominal impedance(Nominal Impedance)
|
---
|
50
|
---
|
Ω
|
|
Amplifier Safeguard Temp（Power Amplifier Temperature Protection）
|
60
|
---
|
---
|
℃
|
|
Safeguard Power In（InputSignal Protection）
|
---
|
---
|
3
|
dBm
|
|
Connector（Connector）
|
RFin:SMA-F,RFout:SMA-F
|
|
Dimension（Dimension）
|
≈294.3*238.5*30mmWithout Connectors
|
|
Control system（Control）
|
Null
|
|
Remarks（Remarks）
|
|
|
|
6、Model：ZLPA6G18G50
|
|
Operating Specifications(Technical Specifications）
|
|
Parameter（Parameters）
|
Min
|
Typ
|
Max
|
Units
|
|
Frequency（Frequency）
|
6000
|
---
|
18000
|
MHz
|
|
Avg Output PowerPast（Output Saturation Power）
|
50
|
---
|
---
|
Watts
|
|
Avg Output Power P-1（Output Linear Power）
|
---
|
---
|
---
|
Watts
|
|
Gain（Gain）
|
47
|
---
|
---
|
dB
|
|
Power In（Input Power）
|
---
|
---
|
3
|
dBm
|
|
Supply Voltage(Supply Voltage DC）
|
28
|
---
|
---
|
V
|
|
Supply Power(Supply Power DC）
|
---
|
---
|
800
|
W
|
|
Gain Flatness(Gain Flatnes）
|
---
|
±4.5
|
---
|
dB
|
|
Harmonic((Second Harmonic)@P1dB
|
---
|
-13
|
---
|
dBc
|
|
Spurious(Spurious)
|
---
|
-50
|
---
|
dBc
|
|
Storage Temp（Storage Temperature）
|
-20
|
---
|
60
|
℃
|
|
Case Oper Temp（Operation Temperature）
|
0
|
---
|
40
|
℃
|
|
Input VSWR（Input VSWR）
|
---
|
2.0
|
---
|
|
|
Output VSWR（Output VSWR）
|
---
|
---
|
---
|
|
|
Nominal impedance(Nominal Impedance)
|
---
|
50
|
---
|
Ω
|
|
Amplifier Safeguard Temp（Power Amplifier Temperature Protection）
|
60
|
---
|
---
|
℃
|
|
Safeguard Power In（InputSignal Protection）
|
---
|
---
|
3
|
dBm
|
|
Connector（Connector）
|
RFin:SMA-F,RFout:N-F
|
|
Dimension（Dimension）
|
≈260*200*40mmWithout Connectors
|
|
Control system（Control）
|
Null
|
|
Remarks（Remarks）
|
|
|
|
7、Model：ZLPA18G26.5G50
|
|
Operating Specifications(Technical Specifications）
|
|
Parameter（Parameters）
|
Min
|
Typ
|
Max
|
Units
|
|
Frequency（Frequency）
|
18000
|
---
|
26500
|
MHz
|
|
Avg Output PowerPast（Output Saturation Power）
|
50
|
---
|
---
|
Watts
|
|
Avg Output Power P-1（Output Linear Power）
|
---
|
---
|
---
|
Watts
|
|
Gain（Gain）
|
47
|
---
|
---
|
dB
|
|
Power In（Input Power）
|
---
|
---
|
3
|
dBm
|
|
Supply Voltage(Supply Voltage DC）
|
24
|
---
|
---
|
V
|
|
Supply Power(Supply Power DC）
|
---
|
---
|
600
|
W
|
|
Gain Flatness(Gain Flatnes）
|
---
|
±4.0
|
---
|
dB
|
|
Harmonic((Second Harmonic)@P1dB
|
---
|
-13
|
---
|
dBc
|
|
Spurious(Spurious)
|
---
|
-50
|
---
|
dBc
|
|
Storage Temp（Storage Temperature）
|
-20
|
---
|
60
|
℃
|
|
Case Oper Temp（Operation Temperature）
|
0
|
---
|
40
|
℃
|
|
Input VSWR（Input VSWR）
|
---
|
2.0
|
---
|
|
|
Output VSWR（Output VSWR）
|
---
|
---
|
---
|
|
|
Nominal impedance(Nominal Impedance)
|
---
|
50
|
---
|
Ω
|
|
Amplifier Safeguard Temp（Power Amplifier Temperature Protection）
|
60
|
---
|
---
|
℃
|
|
Safeguard Power In（InputSignal Protection）
|
---
|
---
|
3
|
dBm
|
|
Connector（Connector）
|
RFin:2.92-k,RFout:WR42
|
|
Dimension（Dimension）
|
≈260*200*40mmWithout Connectors
|
|
Control system（Control）
|
Null
|
|
Remarks（Remarks）
|
|
