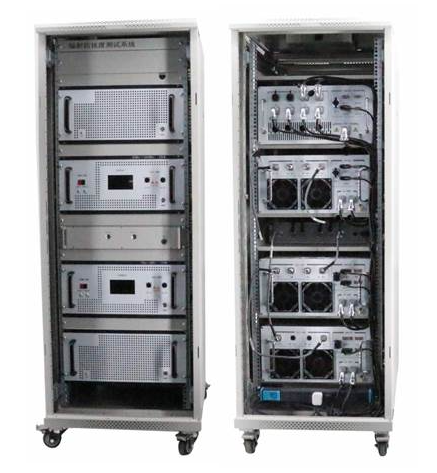

IEC 61000-4-3 Full PA Series

It supports 3m field strength calibration and testing, covering 3V calibrated to 5.4V and 10V calibrated to 18V, with linear performance meeting the 3dB index requirement.
It features a friendly and intuitive human-machine interaction interface.
Adopting a reasonable structural design with a sleek and elegant appearance.
It delivers reliable performance and is easy for daily operation and maintenance.

Professional EMC Power Amplifier Solutions

I. Power Amplifier Series Models

Model	Frequency MHz	Output Power Min (Past) dBm	Output Power Typ（P-1） dBm	Gain Min dB	Flatness Typ dB	Output VSWR Typ	Input VSWR Typ	Dimension *LWHmmmmmm*
ZlPA80M1G250	80-1000	54.0	53.0	54.0	±4.0	5.0	2.0	480550225
ZLPA1G6G100	1000-6000	50.0	48.0	50.0	±4.5	4.0	2.0	480550225
ZLSPDTDC6G200-3	80-6000	53.0	---	---	±1.0	---	2.0	480550225

II.Technical Specifications
1、Model：ZLPA80M1G250

Operating Specifications(Technical Specifications）
Parameter（Parameters）	Min	Typ	Max	Units
Frequency（Frequency）	80.0	---	1000.0	MHz
Avg Output PowerPast（Output Saturation Power）	250	---	---	Watts
Avg Output Power P-1（Output Linear Power）	200	---	---	Watts
Gain（Gain）	54	---	---	dB
Power In（Input Power）	---	---	3	dBm
Supply Voltage(Supply Voltage AC）	198	---	240	V
Supply Power(Supply Power AC）	---	---	1500	W
Gain Flatness(Gain Flatnes）	---	±4.0	---	dB
Harmonic(Second Harmonic)@P1dB	---	-20	---	dBc
Spurious(Spurious)	---	-50	---	dBc
Storage Temp（Storage Temperature）	-20	---	60	℃
Case Oper Temp（Operation Temperature）	0	---	40	℃
Input VSWR（Input VSWR）	---	2.0	---
Output VSWR（Output VSWR）	---	5.0	---
Nominal impedance(Nominal Impedance)	---	50	---	Ω
Amplifier Safeguard Temp（Power Amplifier Temperature Protection）	60	---	---	℃
Safeguard Power In（InputSignal Protection）	---	---	3	dBm
Connector（Connector）	RFin:N-F,RFout:N-F，FWD:N-F,RVE:N-F（Connector on the Rear Panel）
Dimension（Dimension）	5U19 inch Chassis Approximately（480×550×225mm）
Control system（Control）	Ethernet Port/GPIB
Remarks（Remarks）
Remarks（Remarks）

2、Model：ZLPA1G6G100

Operating Specifications(Technical Specifications）
Parameter（Parameters）	Min	Typ	Max	Units
Frequency（Frequency）	1.0	---	6.0	GHz
Avg Output PowerPast（Output Saturation Power）	100.0	---	---	Watts
Avg Output Power P-1（Output Linear Power）	60.0	---	---	Watts
Gain（Gain）	50.0	---	---	dB
Power In（Input Power）	---	---	3	dBm
Supply Voltage(Supply Voltage AC）	198	---	240	V
Supply Power(Supply Power AC）	---	---	1600	W
Gain Flatness(Gain Flatnes）	---	±4.5	---	dB
Harmonic(Second Harmonic)@P1dB	---	-20	---	dBc
Spurious(Spurious)	---	-50	---	dBc
Storage Temp（Storage Temperature）	-20	---	60	℃
Case Oper Temp（Operation Temperature）	0	---	40	℃
Input VSWR（Input VSWR）	---	2.0	---
Output VSWR（Output VSWR）	---	4.0	---
Nominal impedance(Nominal Impedance)	---	50	---	Ω
Amplifier Safeguard Temp（Power Amplifier Temperature Protection）	60	---	---	℃
Safeguard Power In（InputSignal Protection）	---	---	3	dBm
Connector（Connector）	RFin:N-F,RFout:N-F，FWD:N-F,RVE:N-F（Connector on the Rear Panel）
Dimension（Dimension）	10U19inch Chassis Approximately（480×550×440mm）
Control system（Control）	Ethernet Port/GPIB
Remarks（Remarks）
Remarks（Remarks）

三、可选配件

Option	Description	Paid	Option	Remarks
+A	Input and output interfaces are on the front panel.	Standard configuration
+B	Input and output interfaces are on the rear panel.	Standard configuration		Rear panel by default
+C	Security lock（dB15)	Standard configuration
+D	Provide forward and reverse coupling ports.	Optional at extra cost
+E	Gain，Adjustable power	Optional at extra cost
+F	Communication ports are optional.：Ethernet Port，GPIB	Standard configuration		Ethernet Port

III.Optional accessories

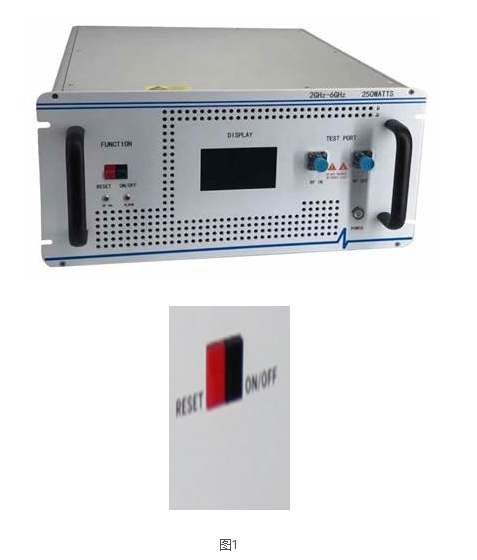

1) Front Panel Definition (See Figure 1)

Front Panel Definition (See Figure 1)
(1) RFIN: RF signal input port
(2) RFOUT: RF signal output port
(3) DISPLAY: Shows working status including drive level, output power, temperature, VSWR, band switching, etc.
(4) FUNCTION: RF control key for reset and RF enable/disable
RESET: Dual-function key for reset and RF toggle.
When the amplifier is in initial standby state, press this key to enable normal operation.
If the amplifier enters protection mode caused by overdrive, over-temperature or high VSWR, press this key to restore normal operation.
RF toggle function: Press during normal operation to cut off RF output; press again to resume operation.
ON/OFF: RF output switch. Press once to stop amplifier output; press again to restart output.
(5) POWER: Main power switch. Press to power on; press again to power off.

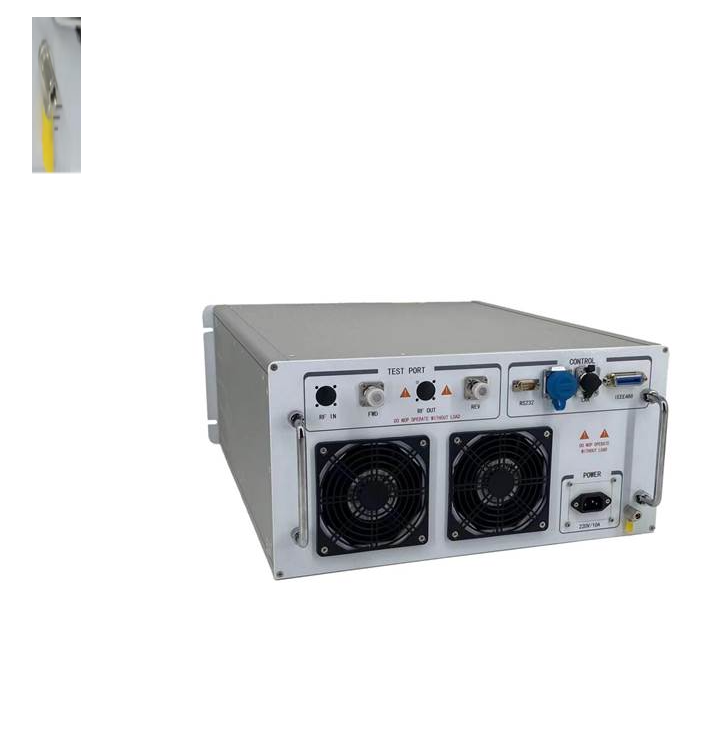

Rear Panel Definition (See Figure 2)
(1) RFIN: Spare RF signal input port
(2) RFOUT: Spare RF signal output port
(3) FWD: Forward monitoring port
(4) REV: Reverse monitoring port
(5) LAN: Ethernet communication port
(6) AC220±10V: AC power socket
(7) Equipment grounding terminal
